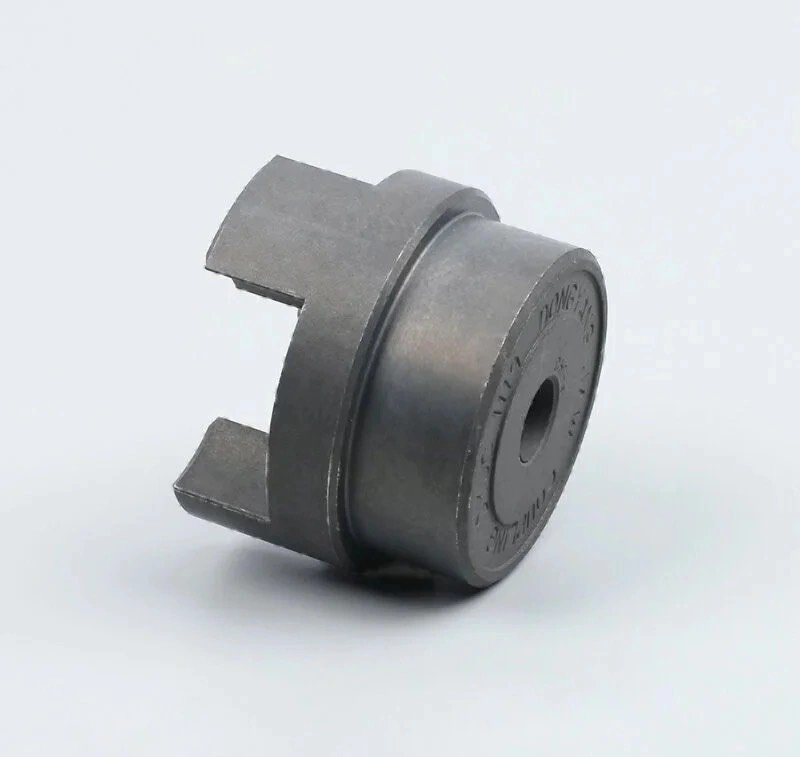

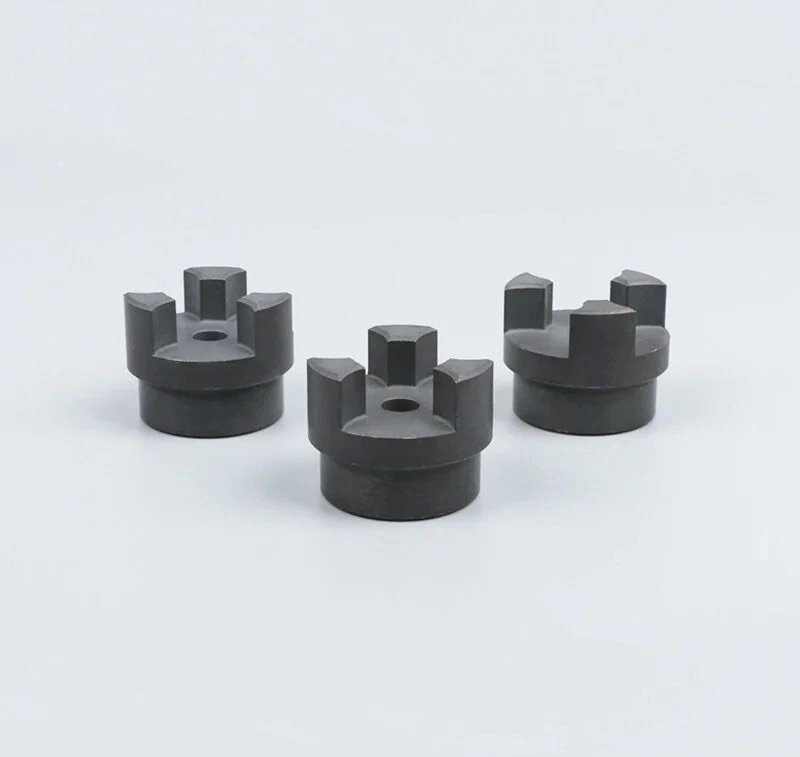

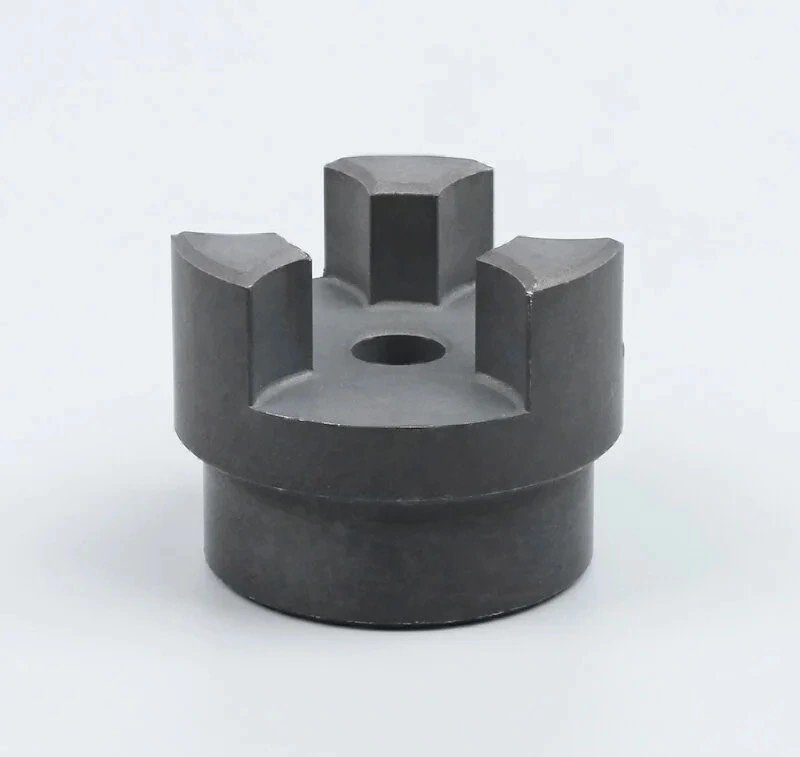

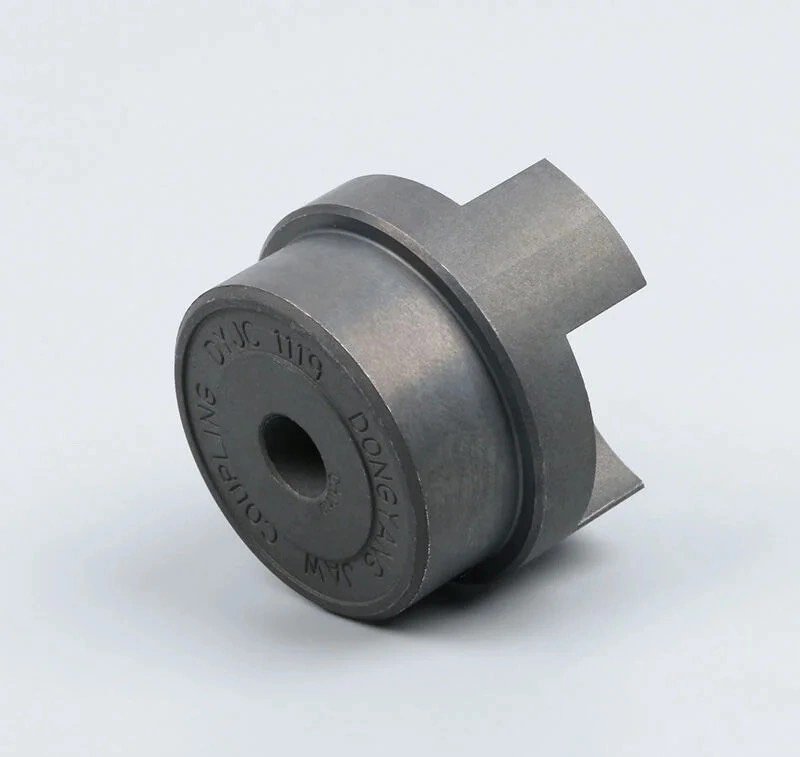

Jaw Type Coupling Hub

Jaw Type Coupling Hub Powder Metallurgy

Our Jaw Coupling Hubs are manufactured using powder metallurgy technology and feature a precision three-jaw design for reliable torque transmission between shafts.

The hub is designed to work with a matching jaw coupling hub and an elastomer spider. The flexible spider element helps accommodate minor shaft misalignment while reducing vibration and shock during operation.

Key Features

• Three-jaw design for reliable coupling engagement

• Powder metallurgy manufacturing for efficient high-volume production

• Compact and lightweight construction

• Designed for reliable torque transmission

• Compatible with an elastomer spider for flexible coupling

• Helps accommodate minor angular, parallel and axial misalignment

• Helps reduce vibration and transmission shock

• Available in various bore sizes and configurations

Applications

Jaw coupling hubs are widely used in motors, pumps, gearboxes, automation equipment, conveyors, industrial machinery and other power transmission systems where flexible shaft coupling is required.

Powder Metallurgy Advantages

Powder metallurgy is well suited to the production of jaw coupling hubs with complex profiles and repeated geometries. It offers:

• Efficient material utilization

• Consistent production quality

• Near-net-shape manufacturing

• Reduced machining requirements

• Cost-effective production for medium and high volumes

Custom Manufacturing

We can manufacture jaw coupling hubs according to customer drawings or specifications, including:

• Number of jaws

• Bore diameter

• Keyway dimensions

• Hub diameter

• Overall height

• Jaw dimensions

• Material

• Density and mechanical properties

• Surface treatment

Custom configurations are available for OEM and industrial applications.
