Compound Timing Sprocket
Compound Timing Sprocket: Multi-stage design with different tooth counts for compact speed reduction and reliable power transmission.
Brief introduction

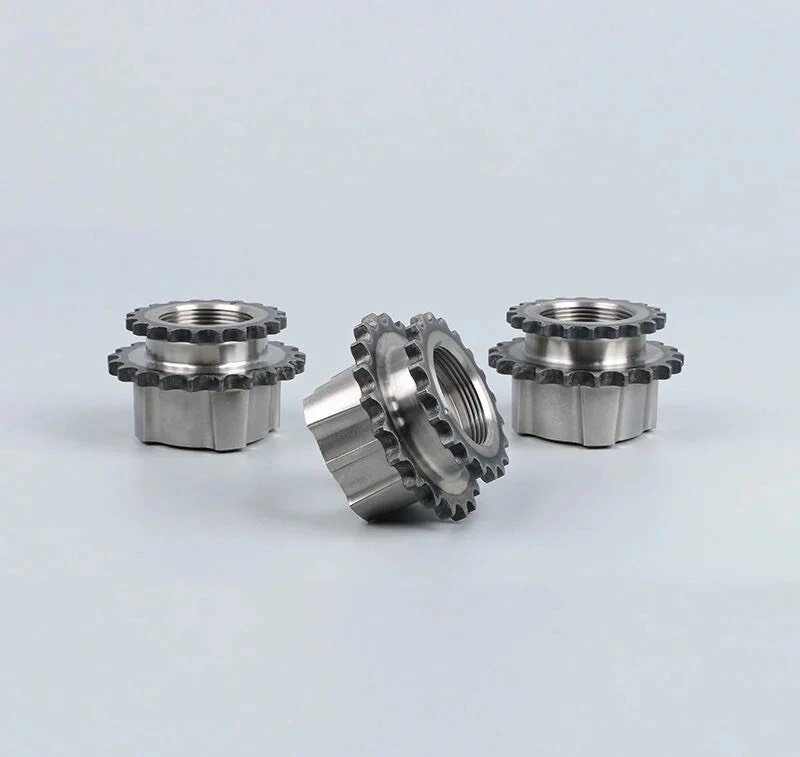

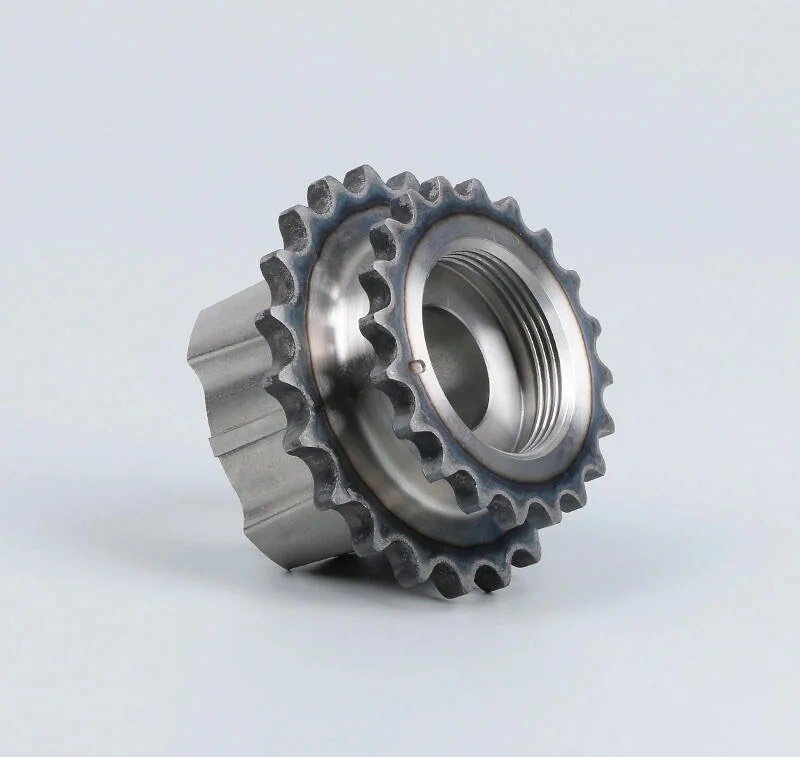

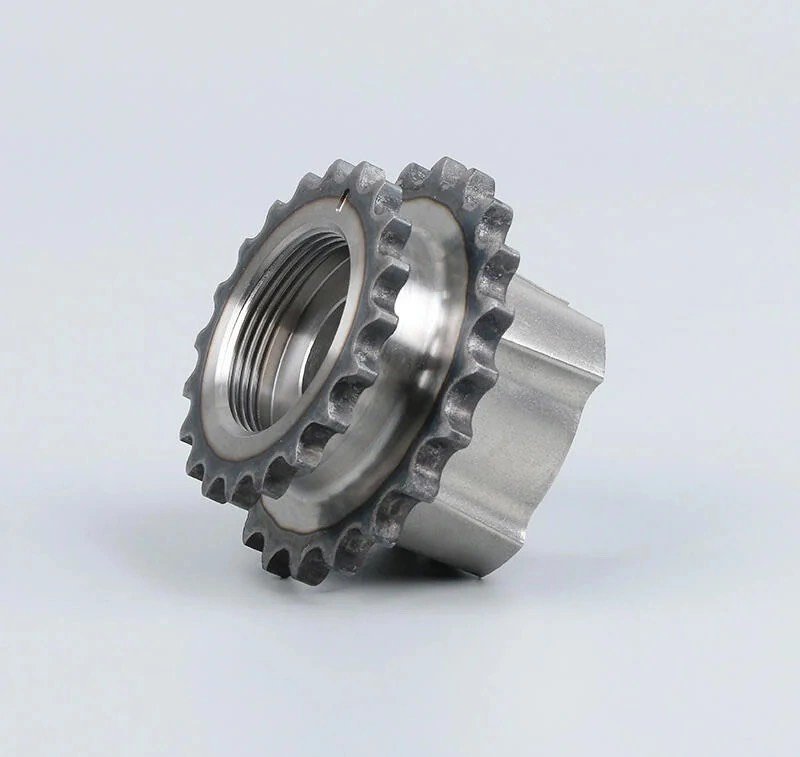

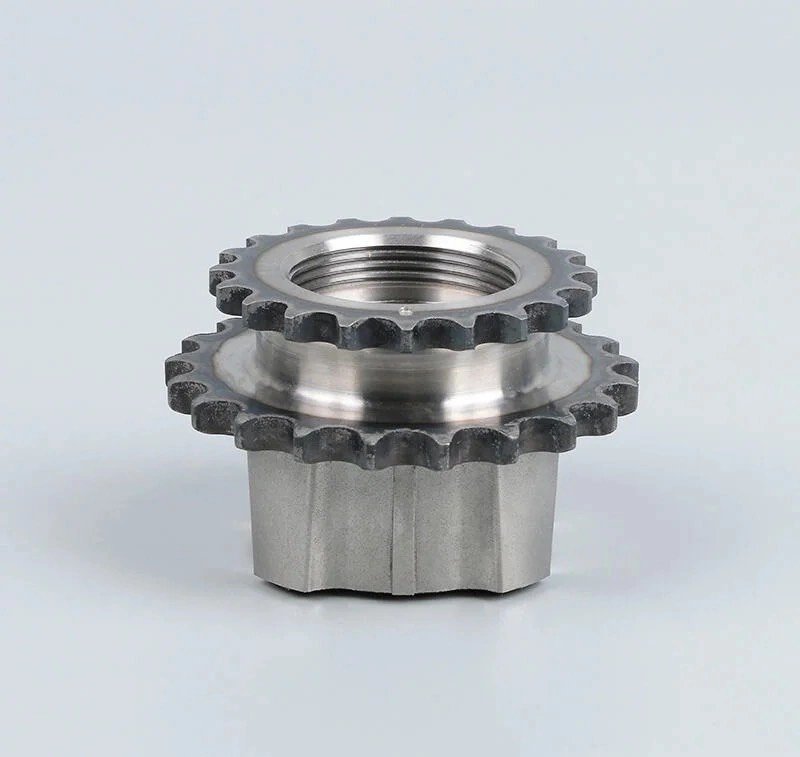

Compound Timing Sprocket
Our Compound Roller Chain Sprockets combine two sprocket sections with different tooth counts and diameters into a single compact component. This design provides flexible transmission solutions while reducing installation space and simplifying the overall drive system.
Key Features
Multi-stage sprocket design with different tooth counts
Compact integrated construction saves installation space
Suitable for different transmission ratios depending on system configuration
Durable tooth profile for reliable roller chain engagement
Available with customized bore, thread, keyway and dimensional specifications
Suitable for a wide range of mechanical power transmission applications
Applications
Compound sprockets are commonly used in industrial machinery, conveyors, automation equipment, material handling systems and mechanical transmission assemblies where compact multi-stage chain transmission is required.
Custom Manufacturing
We support customized production based on customer drawings or specifications, including tooth count, chain size, pitch diameter, bore diameter, thread, keyway, material and surface treatment.
| Weight | 15g |
| Size | Customization accepted |
| Process | Powder Metallurgy |
| Material | lron base alloys |
| Tolerance | ±0.01mm |
| Hardness | HRB50-60 |
| MOQ | 1000PCS |
| Lead Time | 20Days |
| Sample | Available |
| Application | Reducer Motor |
About us
Our company primarily manufactures powder metallurgy products produced through metal injection molding (MIM) and powder compression molding (PM), including stainless steel, iron-based, and copper-based precision structural parts, and precision oil-impregnated bearings.
Main Products or Services: Powder metallurgy products; stainless steel parts; gears; lock accessories; power tool accessories; pneumatic tool accessories; smart lock accessories; automotive parts; home appliance metal parts; metal injection molding; iron-based powder metallurgy; copper-based powder metallurgy; oil-impregnated bearings; mobile phone accessories; structural parts
Main Industries: Automotive and motorcycle parts processing; gears; lock accessories; mechanical parts processing; metal processing; bearings
Widely used in: Automotive industry (gears, sprockets, gearbox gears, etc.)
Machinery industry (gears, rotating bushings, shredder gears, food machinery, agricultural machinery, etc.)
Household appliances (washing machines, juicers, blenders, soy milk makers, etc., with oil-impregnated bearings)
Communication products (mobile phone buttons, mobile phone accessories)
Electric and hand tools (gears, cylinder liners, etc.)
Miniature motors (gears, oil-impregnated bearings, gearboxes)
Medical equipment (precision scalpels)
Toy parts (transmission gears, bushings, connecting pieces)
Lock parts (lock cylinders, pull sleeves, pull mechanisms, alloy drawing dies, complex and irregular structural parts).
