Our Powder Metallurgy Planetary Gear Components feature a four-planet configuration with a precision planet carrier, four planet gears and an internal ring gear.

The planet carrier maintains the position and alignment of the planet gears, while the internal ring gear engages with the planet gears to form a compact planetary transmission arrangement. Planetary systems are valued for their coaxial layout, compact size and ability to distribute transmitted load among multiple planet gears.

Key Features

• 4-planet configuration for distributed load transmission
• Precision planet carrier for accurate planet gear positioning
• Four matching planet gears
• Internal ring gear for compact coaxial transmission
• Compact and space-efficient design
• Suitable for high torque density transmission systems
• Powder metallurgy manufacturing for efficient production
• Custom gear ratios and dimensions available

Planetary Gear Components

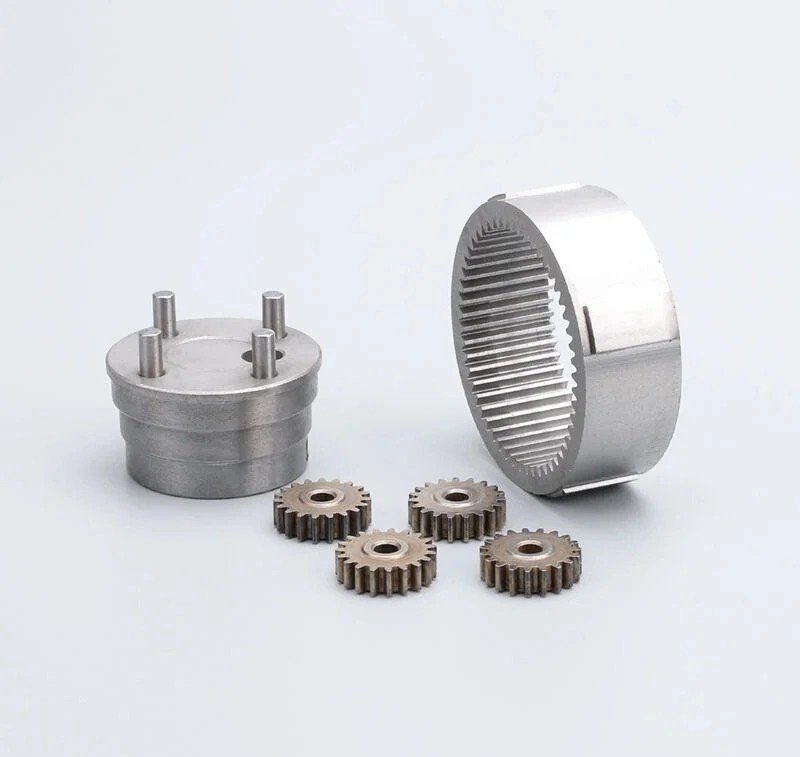

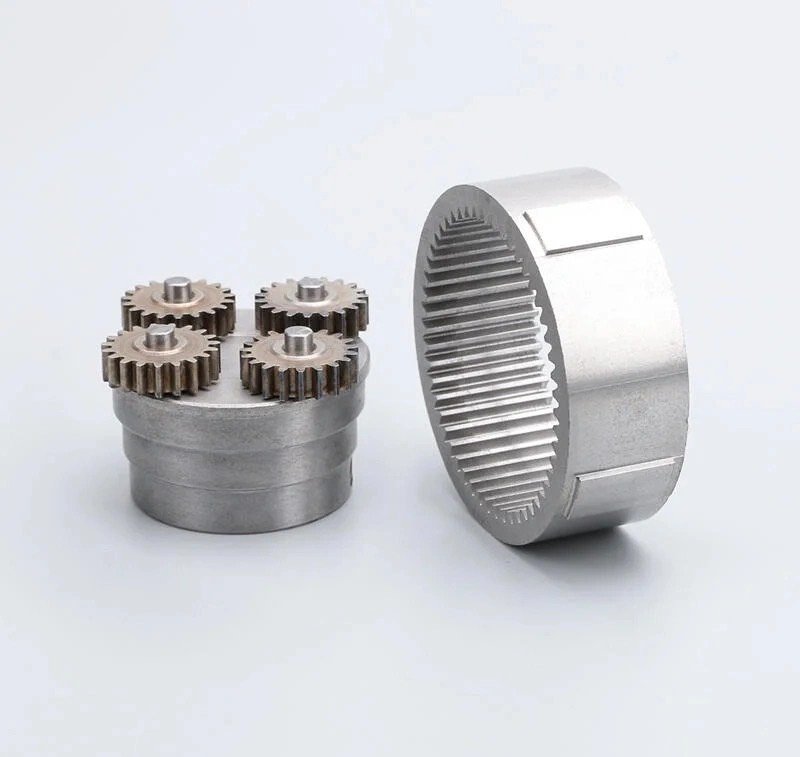

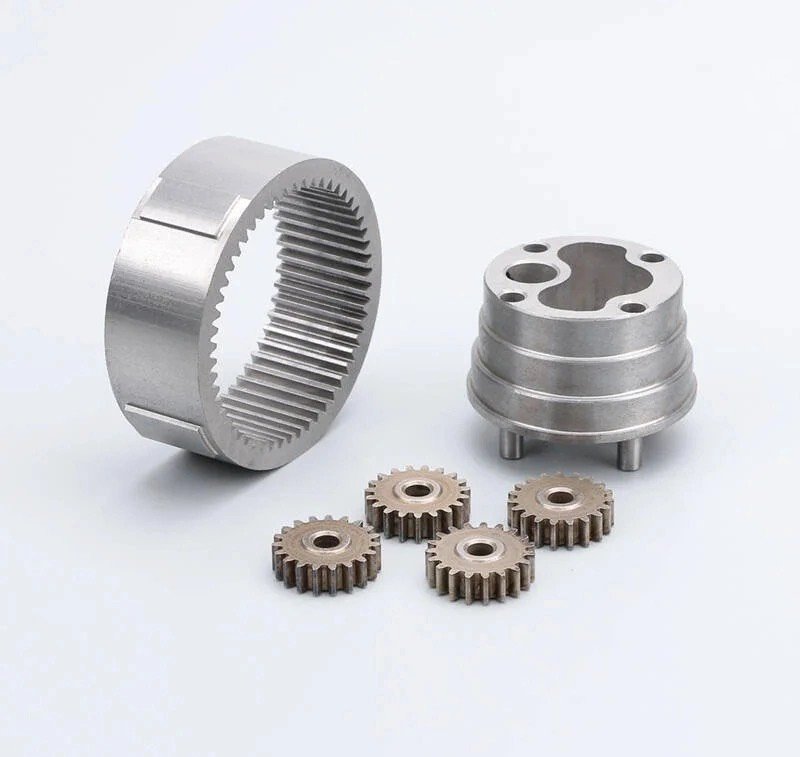

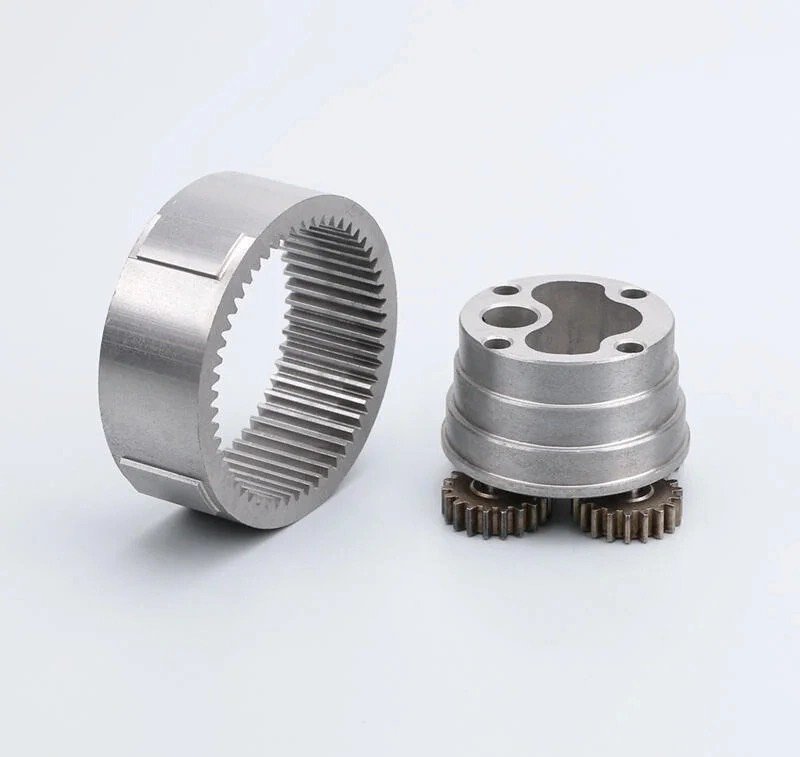

The assembly shown consists of:

• Planet Carrier – supports and positions the planet gears
• 4 × Planet Gears – rotate on their own axes and engage with the mating gears
• Internal Ring Gear – surrounds the planet gears and meshes with their external teeth

A complete planetary gearset may additionally include a Sun Gear, depending on the transmission configuration.

Advantages of Planetary Transmission

Planetary gear arrangements provide several important mechanical advantages:

• Compact coaxial design
• High torque capacity relative to package size
• Load sharing among multiple planet gears
• Multiple speed-ratio configurations
• Suitable for reduction, speed increase and other transmission arrangements

The input, output and stationary members can be configured in different combinations to achieve different speed ratios and torque characteristics.

Powder Metallurgy Advantages

Powder metallurgy is well suited for high-volume production of planetary gear components and can provide efficient material utilization and near-net-shape manufacturing.

Key advantages include:

• Efficient material utilization
• Near-net-shape production
• Consistent dimensional quality
• Reduced machining requirements
• Suitable for complex gear geometries
• Cost-effective medium- and high-volume production

Applications

These planetary gear components are suitable for:

• Gearboxes
• Power tools
• Automotive components
• Robotics
• Automation equipment
• Actuators
• Electric drive systems
• Industrial machinery
• Speed reducers

Custom Manufacturing

We can manufacture planetary gear components according to customer drawings and specifications, including:

• Number of planet gears
• Number of teeth
• Module / Diametral Pitch
• Pressure angle
• Ring gear dimensions
• Planet gear dimensions
• Carrier dimensions
• Planet pin diameter
• Bore diameter
• Material
• Density
• Heat treatment
• Surface treatment

Custom planetary gear configurations and transmission ratios are available for OEM applications.
