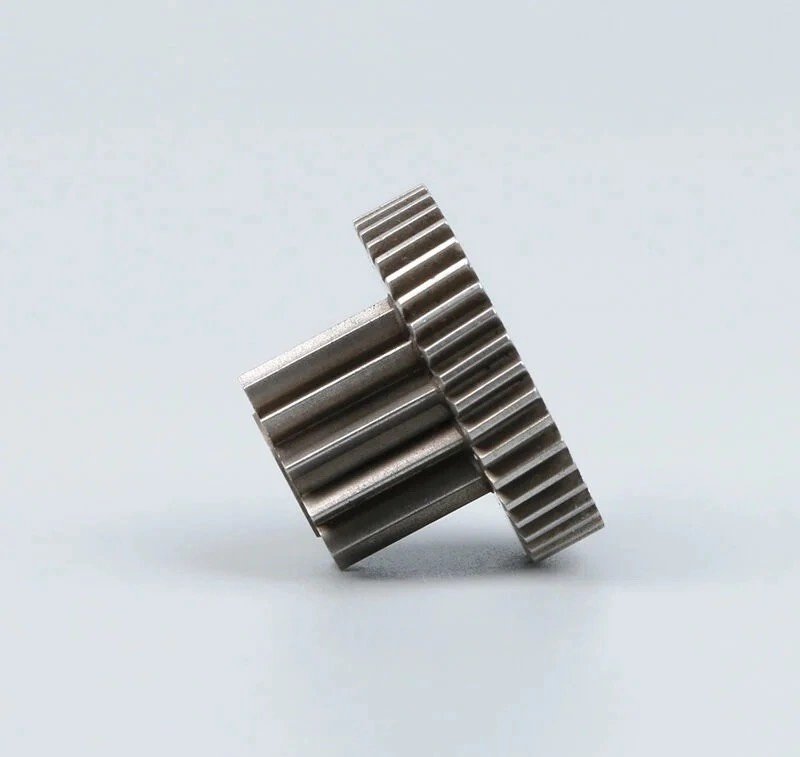

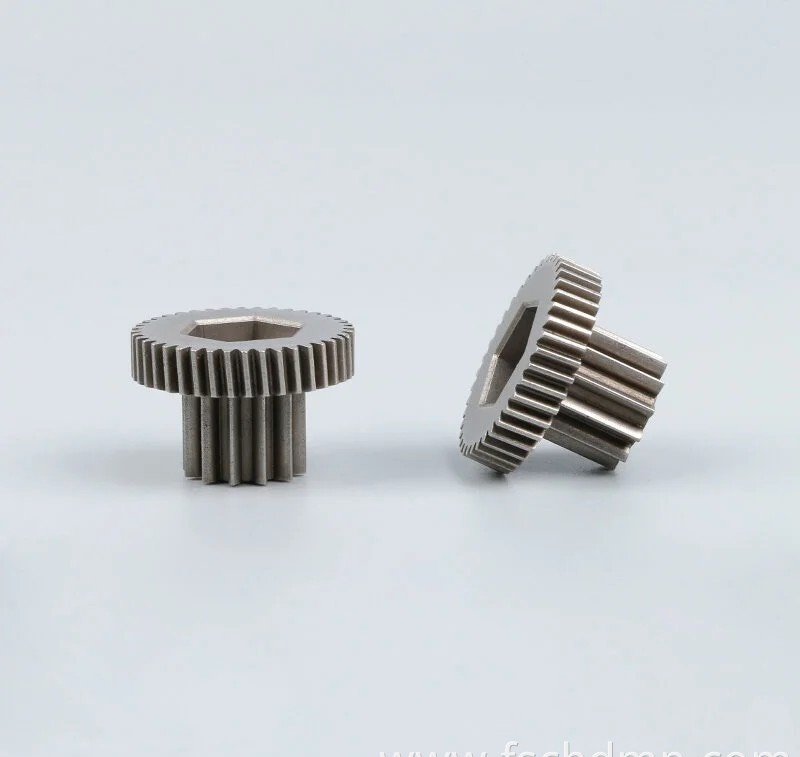

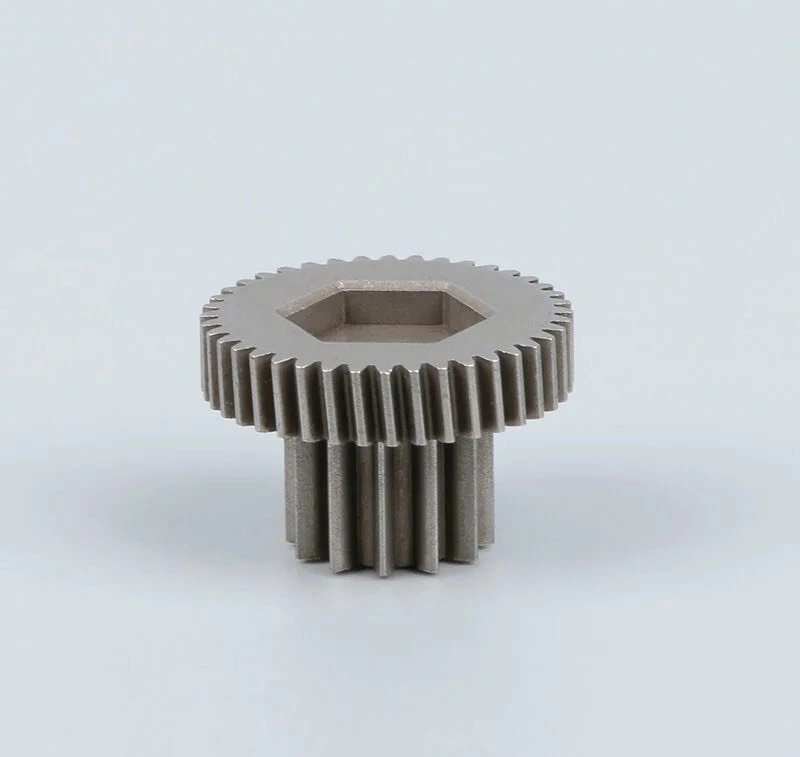

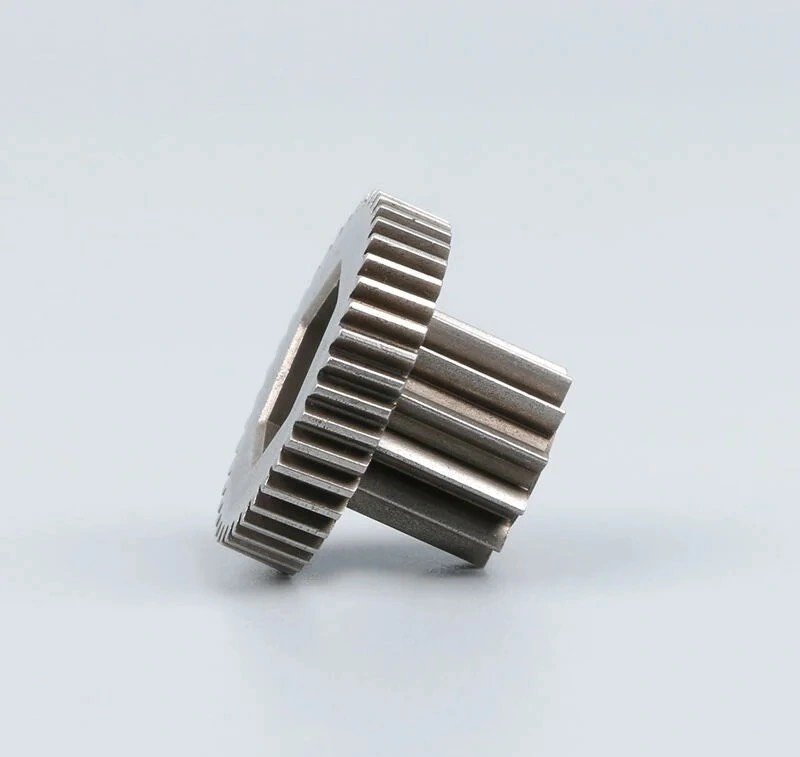

Double Spur Gear

Our Double Spur Gearcombine two spur gears with different diameters and tooth counts into a single compact component. The integrated design eliminates the need for separate gear assembly and provides an efficient solution for multi-stage mechanical transmission systems.

The two gear sections share a common axis, allowing rotational motion and torque to be transferred through a compact arrangement while saving installation space.

Key Features

Two integrated spur gears in one component
Different gear diameters and tooth counts for flexible transmission ratios
Integral construction eliminates separate gear assembly
Compact design helps save installation space
Straight-tooth profile for reliable gear engagement
Suitable for multi-stage mechanical transmission systems
Available in customized tooth counts, modules and dimensions

Applications

Integral double spur gears are suitable for gearboxes, automotive components, automation equipment, industrial machinery, actuators and compact mechanical transmission systems where multiple gear stages need to be integrated into a single component.

Custom Manufacturing

We can manufacture double spur gears according to customer drawings or specifications, including:

Number of teeth for each gear
Module / Diametral Pitch
Pressure angle
Gear diameter
Face width
Overall dimensions
Bore diameter
Hub dimensions
Material
Heat treatment
Surface treatment

Custom gear ratios, dimensions and configurations are available for OEM applications.

Weight	3g
Size	Customization accepted
Process	Powder Metallurgy
Material	lron base alloys
Tolerance	±0.01mm
Hardness	HRB50-60
MOQ	1000PCS
Lead Time	20Days
Sample	Available
Application	Reducer Motor
