Powder Metallurgy Planetary Gear Set: Precision, Lubrication, and Customization
What Is a Planetary Gear Set?

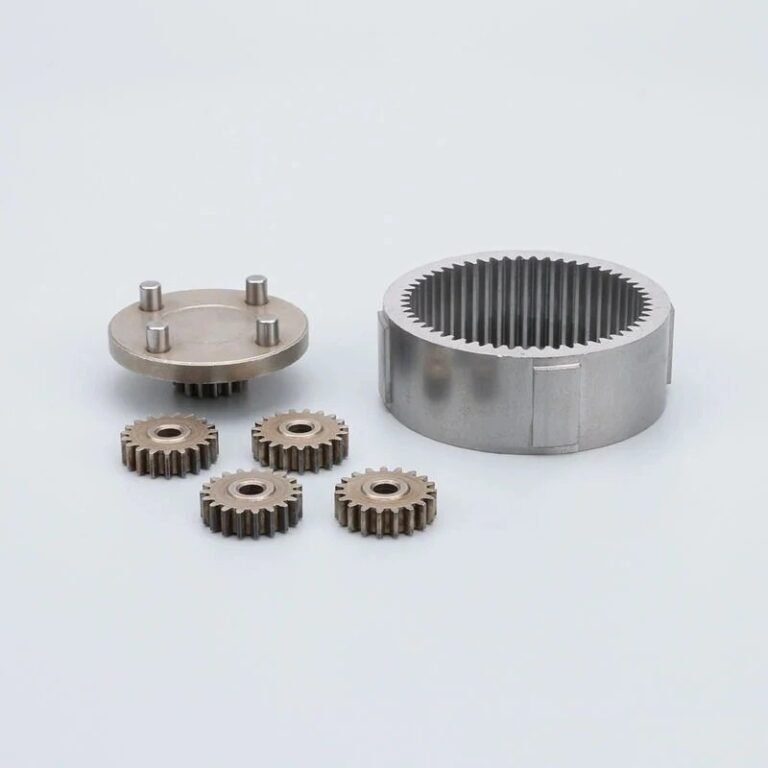

A planetary gear set is a compact transmission mechanism designed to transfer torque and adjust speed within a limited space. It typically consists of a central sun gear, multiple planet gears, a ring gear, and a planet carrier.
Compared with conventional gear arrangements, planetary gear systems offer a compact structure, multiple load-sharing paths, and high torque density. These characteristics make them suitable for applications requiring efficient power transmission and space-saving designs.
Powder Metallurgy Manufacturing for Planetary Gear Sets
Powder metallurgy is a manufacturing process that compresses metal powder into a designed shape and then sinters it at an elevated temperature. This process is well suited to producing small and medium-sized gears in consistent quantities.
For a powder metallurgy planetary gear set, the process can offer several advantages:
Complex gear geometries: Supports the production of intricate gear profiles and integrated component features.
Consistent production: Provides repeatable dimensions and quality for high-volume manufacturing.
Material efficiency: Near-net-shape production can reduce machining requirements and material waste.
Cost-effective manufacturing: Can help control production costs when component designs and order volumes are suitable.
Final dimensional accuracy, tooth quality, and mechanical performance depend on the material, tooling, design, and any secondary operations required.
Oil-Impregnated Gears for Lubrication
Oil impregnation is a process in which interconnected pores in a sintered metal component are filled with lubricating oil. During operation, the oil can migrate toward the working surfaces and provide lubrication.
Oil-impregnated powder metallurgy gears can offer practical benefits in suitable operating conditions:
Reduced need for external lubrication in certain applications.
Simplified assembly and maintenance requirements.
Potentially reduced friction and wear when properly designed and operated.
Integration of lubrication into porous sintered components.
Actual performance depends on gear loading, operating speed, temperature, oil properties, and the surrounding transmission design. Oil impregnation does not eliminate the need to evaluate lubrication requirements for every application.
Key Components of a Planetary Gear System
A typical planetary gear mechanism includes four main elements:
1. Sun Gear
The central gear meshes with the planet gears and transfers rotational motion through the gear train.
2. Planet Gears
These gears rotate around the sun gear while also revolving with the planet carrier. Multiple planet gears can distribute the transmitted load.
3. Ring Gear
The internally toothed ring gear meshes with the planet gears and helps determine the transmission ratio and operating characteristics.
4. Planet Carrier
The carrier supports the planet gears and maintains their positions within the assembly.
The transmission ratio and output behavior depend on which component is used as the input, which is fixed, and which serves as the output.
Applications of Powder Metallurgy Planetary Gear Sets
Powder metallurgy planetary gear sets can be considered for a range of mechanical and electromechanical products, including:
Electric power tools and compact drive mechanisms.
Automotive actuators and selected auxiliary transmission systems.
Small motors and speed-reduction gearboxes.
Home appliances and automated equipment.
Industrial mechanisms requiring compact gear assemblies.
Material selection, dimensional tolerances, load capacity, noise requirements, and lubrication conditions should be evaluated according to the intended application.
Custom Planetary Gear Set Manufacturing for OEM Customers
Every transmission system has its own performance and installation requirements. A custom planetary gear set can be developed around the customer’s mechanical design, operating conditions, and production needs.
As an OEM manufacturing partner, CHDPM can discuss requirements such as:
Gear dimensions, tooth profiles, and component geometry.
Sintered metal materials and mechanical properties.
Oil impregnation requirements and lubrication conditions.
Dimensional tolerances and secondary machining.
Assembly compatibility and production quantities.
Feasibility depends on the specific design, technical specifications, tooling requirements, and order volume.
Why Choose Powder Metallurgy for Planetary Gears?
Powder metallurgy offers a practical manufacturing route for planetary gear components when production volume, part geometry, and material requirements align with the process. Combining sintered metal components with oil impregnation can also support integrated lubrication in suitable applications.
For OEM buyers, the most important considerations are not only the gear design itself but also manufacturing consistency, application-specific performance, and long-term supply reliability.
Contact CHD PM for Custom Gear Solutions
Looking for a supplier of powder metallurgy planetary gear sets or oil-impregnated sintered gears?
Contact CHD PM to discuss your drawings, material requirements, dimensional specifications, and target production volume. Our team can help evaluate manufacturing feasibility and identify a suitable solution for your OEM project.
