What Is Custom Gear Manufacturing?
Custom gear manufacturing involves producing gears according to specific mechanical, dimensional, and performance requirements. Unlike standard off-the-shelf gears, custom gears can be designed to meet the unique needs of machinery, drive systems, and industrial equipment.
Powder metallurgy is an effective manufacturing method for producing certain types of precision metal gears. It uses metal powder that is compacted in a dedicated die and then sintered at a controlled temperature to form a solid component.

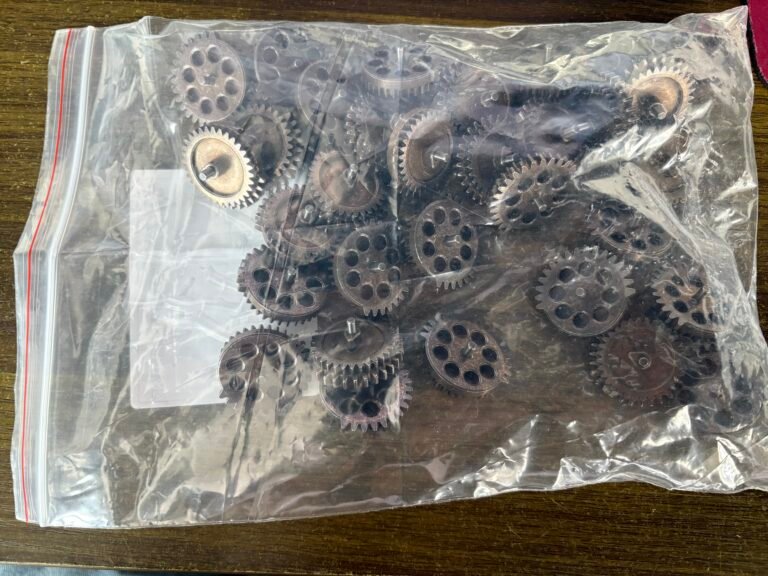

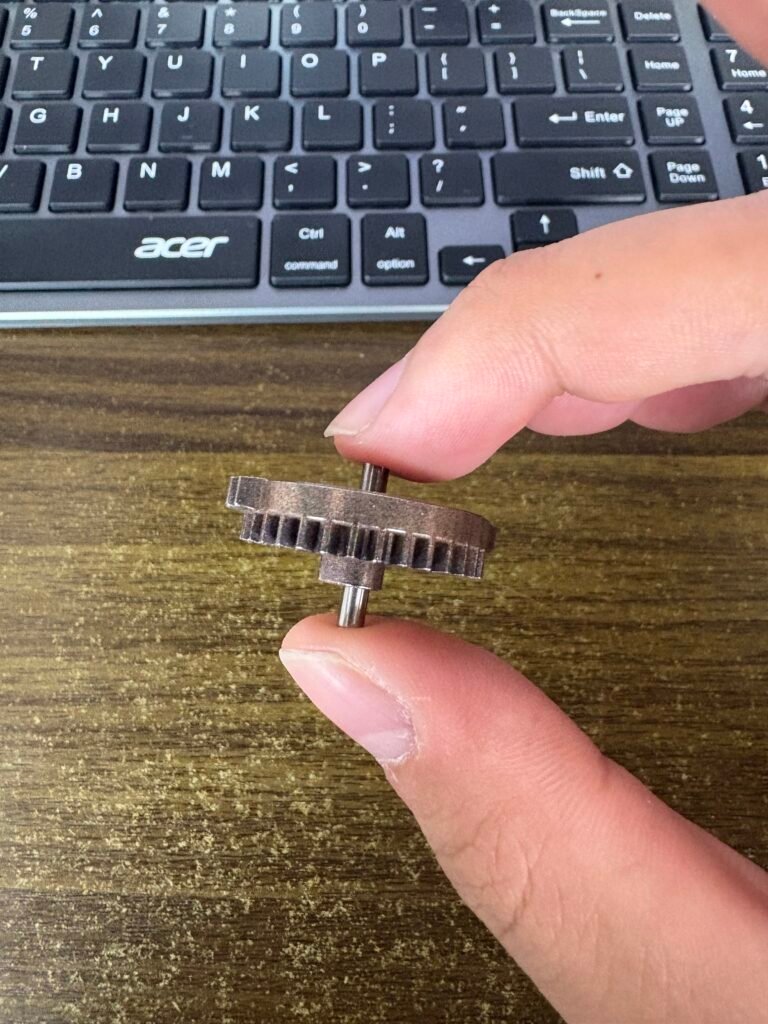

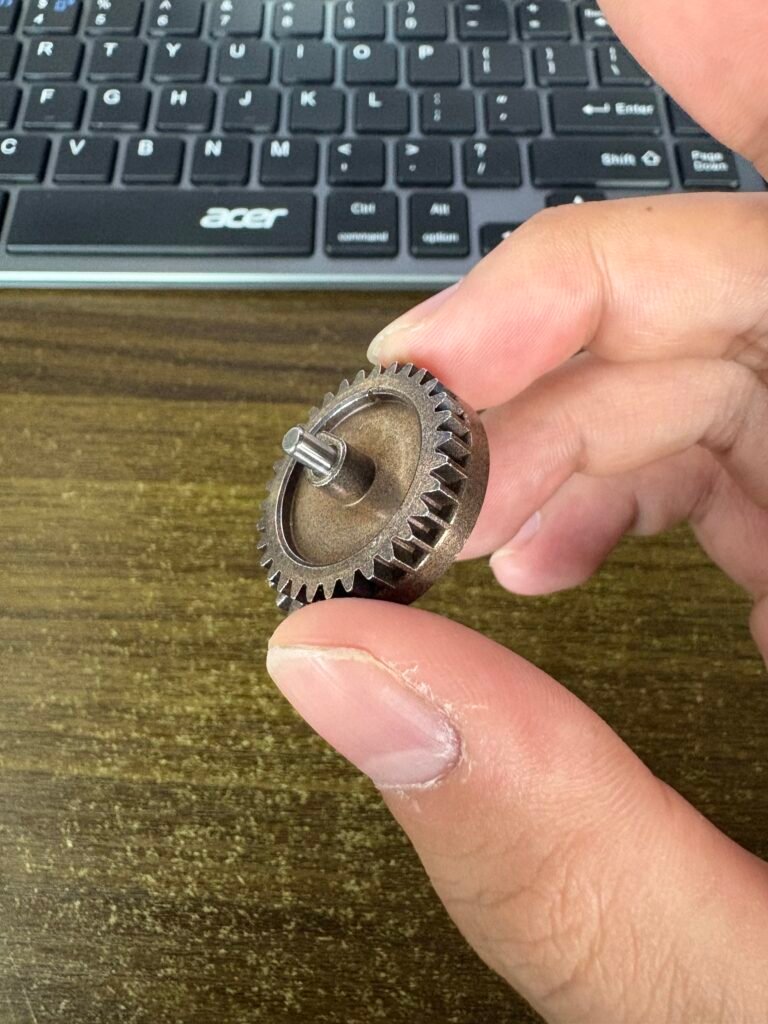

For applications requiring integrated lubrication, powder metallurgy gears can also undergo an oil impregnation process, creating oil-impregnated gears suitable for selected operating conditions.
How Are Oil-Impregnated Powder Metallurgy Gears Made?
The production process generally includes several key stages:
1. Metal Powder Preparation
Metal powders are selected and blended according to the required mechanical properties and application requirements.
2. Powder Compaction
The prepared powder is pressed into a custom-designed die to achieve the required gear geometry. This process can support repeatable production of complex shapes.
3. Sintering
The compacted component is heated under controlled conditions to bond the metal particles and develop the required structural properties.
4. Oil Impregnation
The sintered gear is impregnated with lubricating oil. The interconnected pores within the porous metal structure can retain oil and gradually release it during operation, helping reduce friction in suitable applications.
5. Inspection and Quality Control
Finished gears can be inspected for dimensions, tooth geometry, appearance, and other specifications agreed upon with the customer.
Key Benefits of Oil-Impregnated Custom Gears
Integrated Lubrication
Oil impregnation allows porous metal gears to retain lubricant within their structure. Depending on the operating environment and gear design, this can help reduce the need for frequent external lubrication.
Flexible Customization
Custom gear manufacturing allows manufacturers to tailor gear dimensions, tooth profiles, hub configurations, shaft interfaces, and other features to meet specific application requirements.
Consistent Production
Powder metallurgy can be suitable for repeat production runs where dimensional consistency and controlled manufacturing processes are important.
Potential Cost Efficiency
For suitable geometries and production volumes, powder metallurgy may reduce material waste and machining requirements compared with certain conventional manufacturing methods. The actual cost advantage depends on tooling costs, design complexity, material selection, and order quantity.
Applications of Custom Powder Metallurgy Gears
Oil-impregnated powder metallurgy gears may be considered for applications such as:
Small mechanical drive systems
Electromechanical assemblies
Appliances and consumer equipment
Automotive auxiliary mechanisms
Industrial devices requiring compact transmission components
The suitability of each gear depends on torque, rotational speed, operating temperature, lubrication requirements, noise limits, and expected service life. Applications involving high loads or demanding operating conditions may require alternative materials or manufacturing processes.
Custom Gear Manufacturing for OEM Projects
Choosing the right manufacturing partner is important when developing custom gears for OEM applications. Before requesting a quotation, buyers should prepare the following information where available:
Gear type and technical drawing
Number of teeth, module, and pressure angle
Outer diameter, bore size, and overall dimensions
Material and required mechanical properties
Oil impregnation or other lubrication requirements
Expected production quantity
Application conditions and quality requirements
Providing a detailed drawing and application information helps manufacturers evaluate feasibility, recommend an appropriate process, and prepare a more accurate quotation.
Conclusion
Custom gear manufacturing using powder metallurgy offers a practical solution for selected applications requiring specialized gear geometry, repeatable production, and integrated lubrication. Oil-impregnated gears can provide useful lubrication characteristics when their porous structure and operating conditions are properly matched.
For OEM buyers and equipment manufacturers, careful specification and communication during product development are essential to achieving reliable performance and cost-effective production.
Contact CHDPM to discuss your custom metal component requirements and explore manufacturing solutions for your project.
